Swami
The Swami. From the ground up for the stripped down.

Unmistakable elements
-

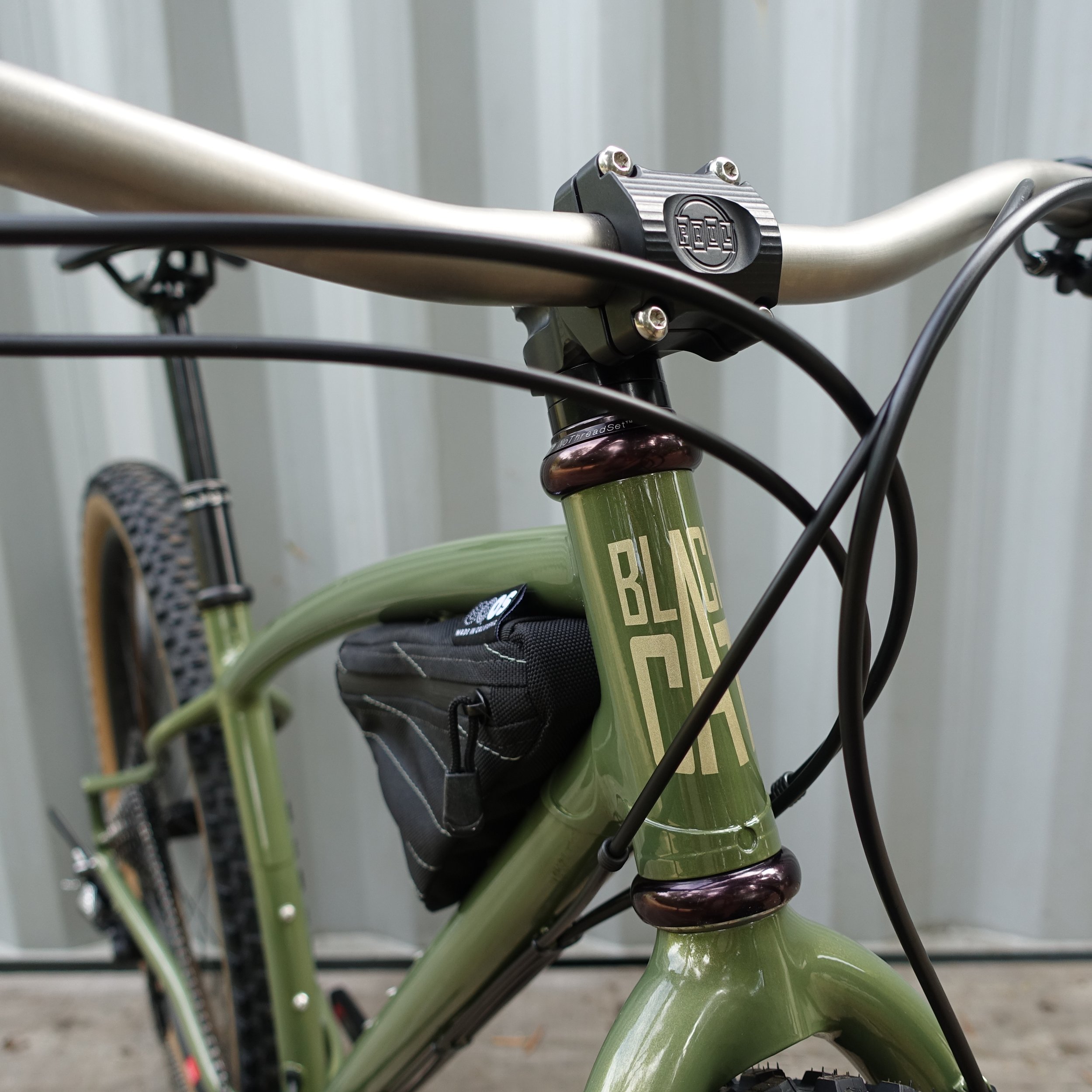

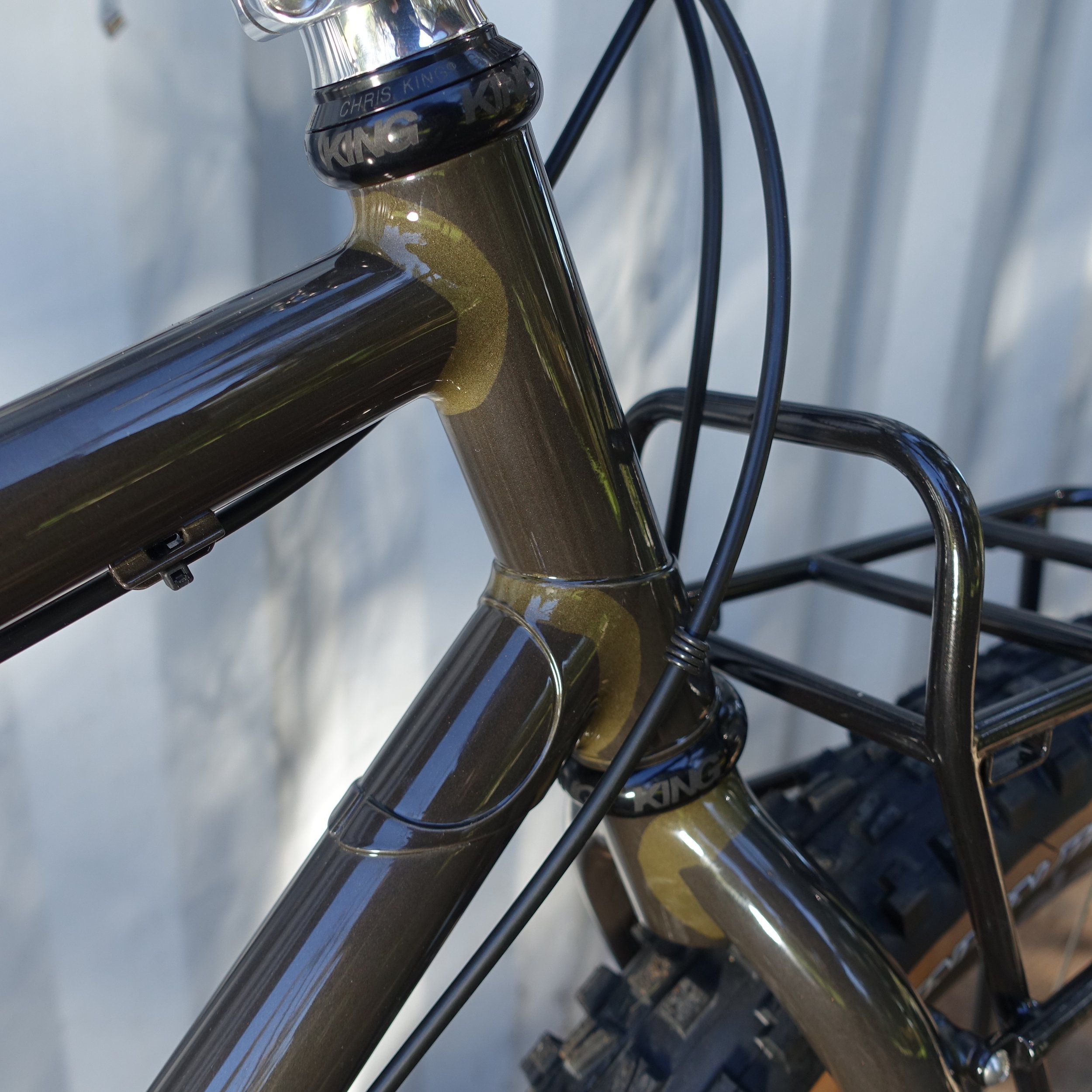

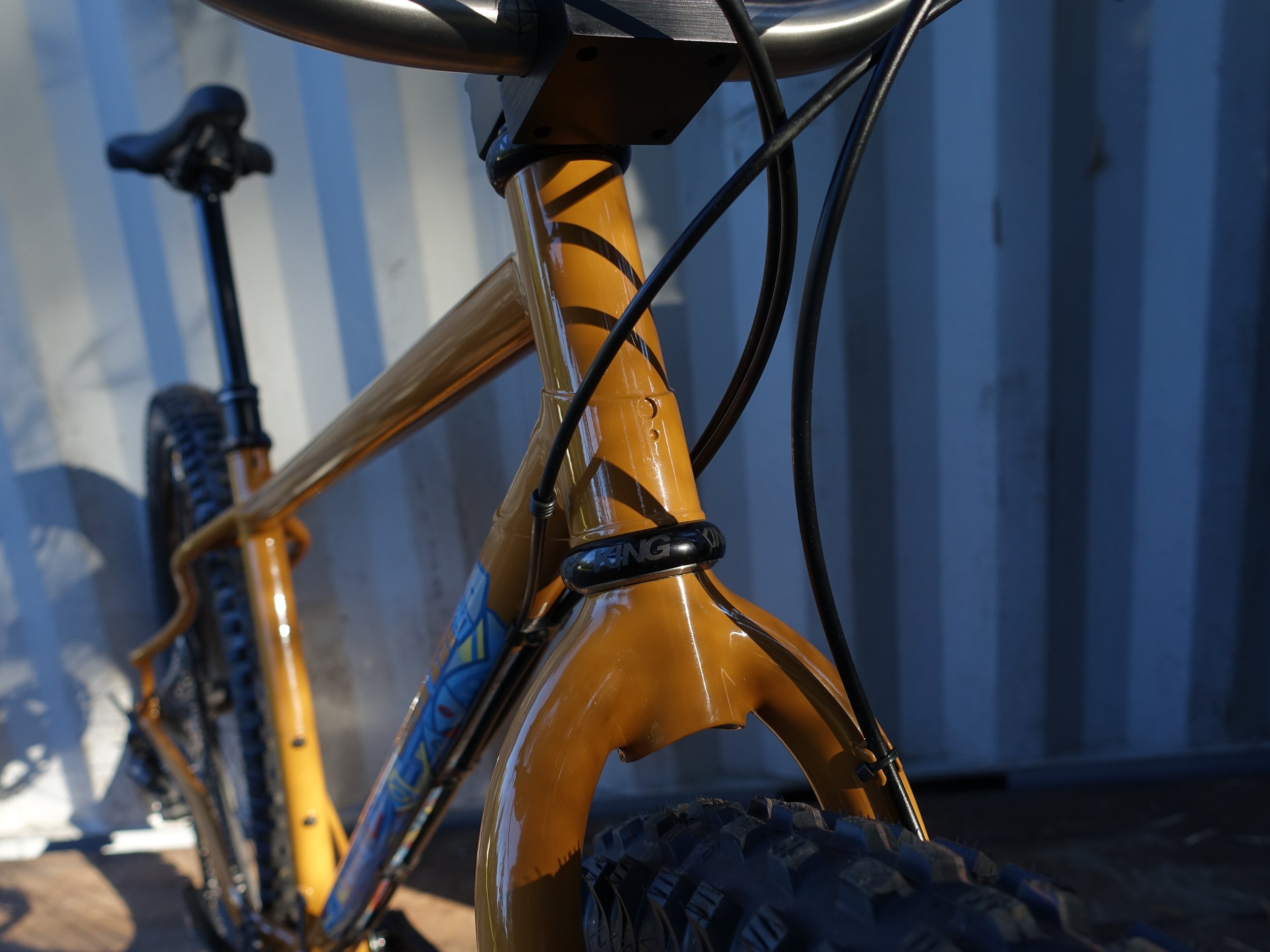

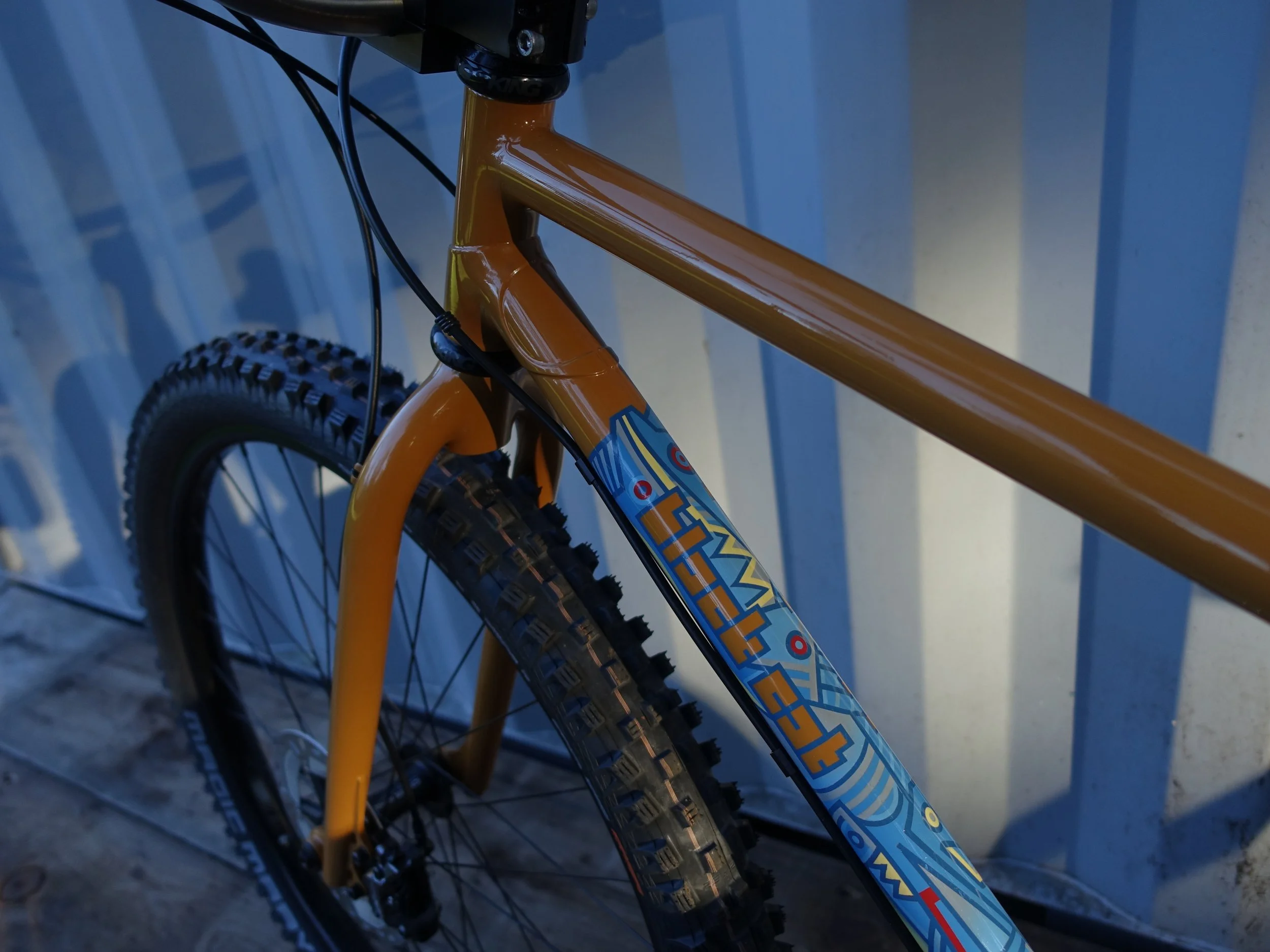

Headtube Lug
It does more than look cool.
It does more than protect the tubes.
When appropriate, it allows the use of a tapered steerer to keep the steering precise, while allowing the rest of the frameset to get its wiggle on.
-
Art School Dropouts
Dropouts are an important interface, not just between the frame and the wheel, but also between you and your bike. The Art School Dropouts are designed for an ease of ownership as much as a safe and reliable way to maintain power from the pedals to the wheel.
-

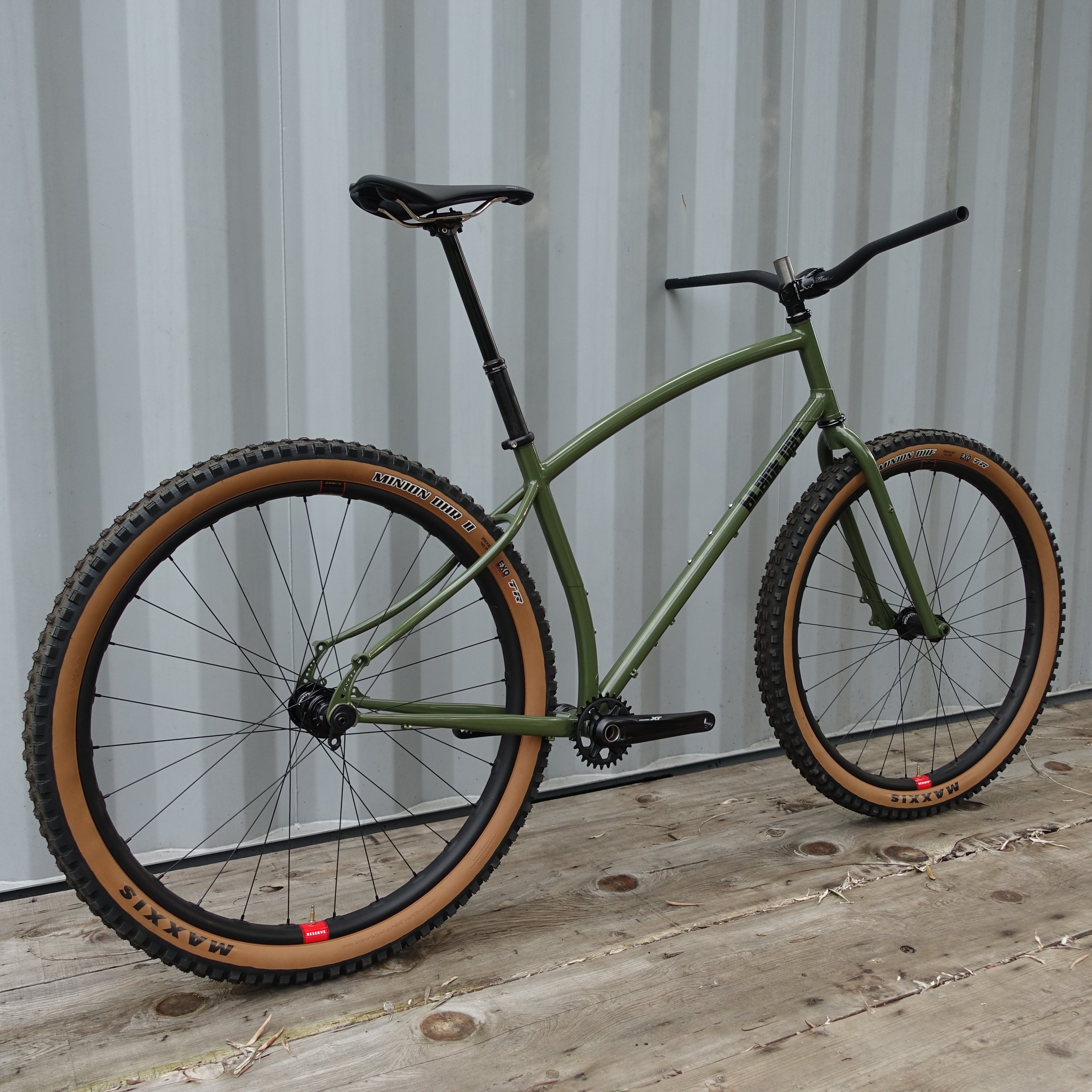

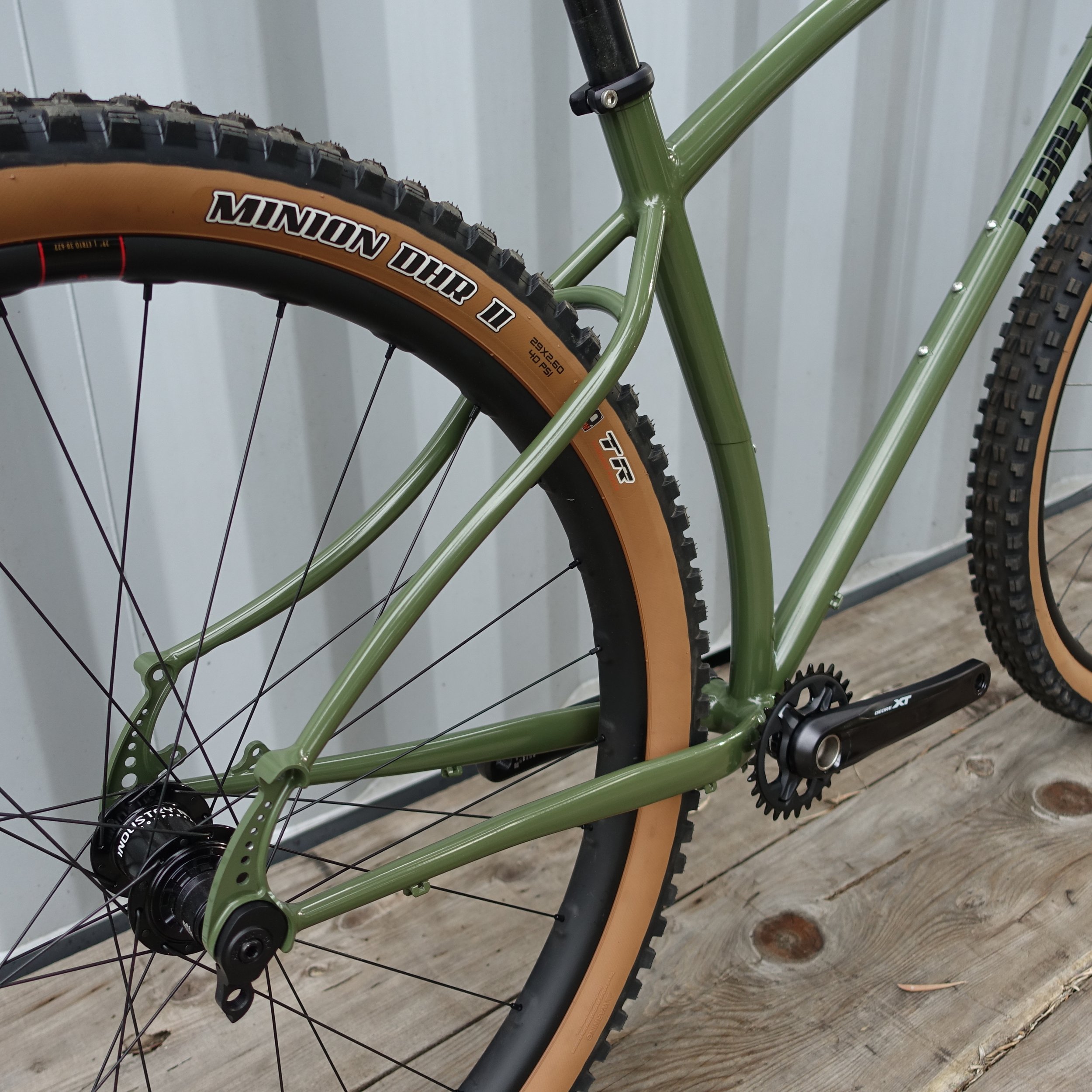

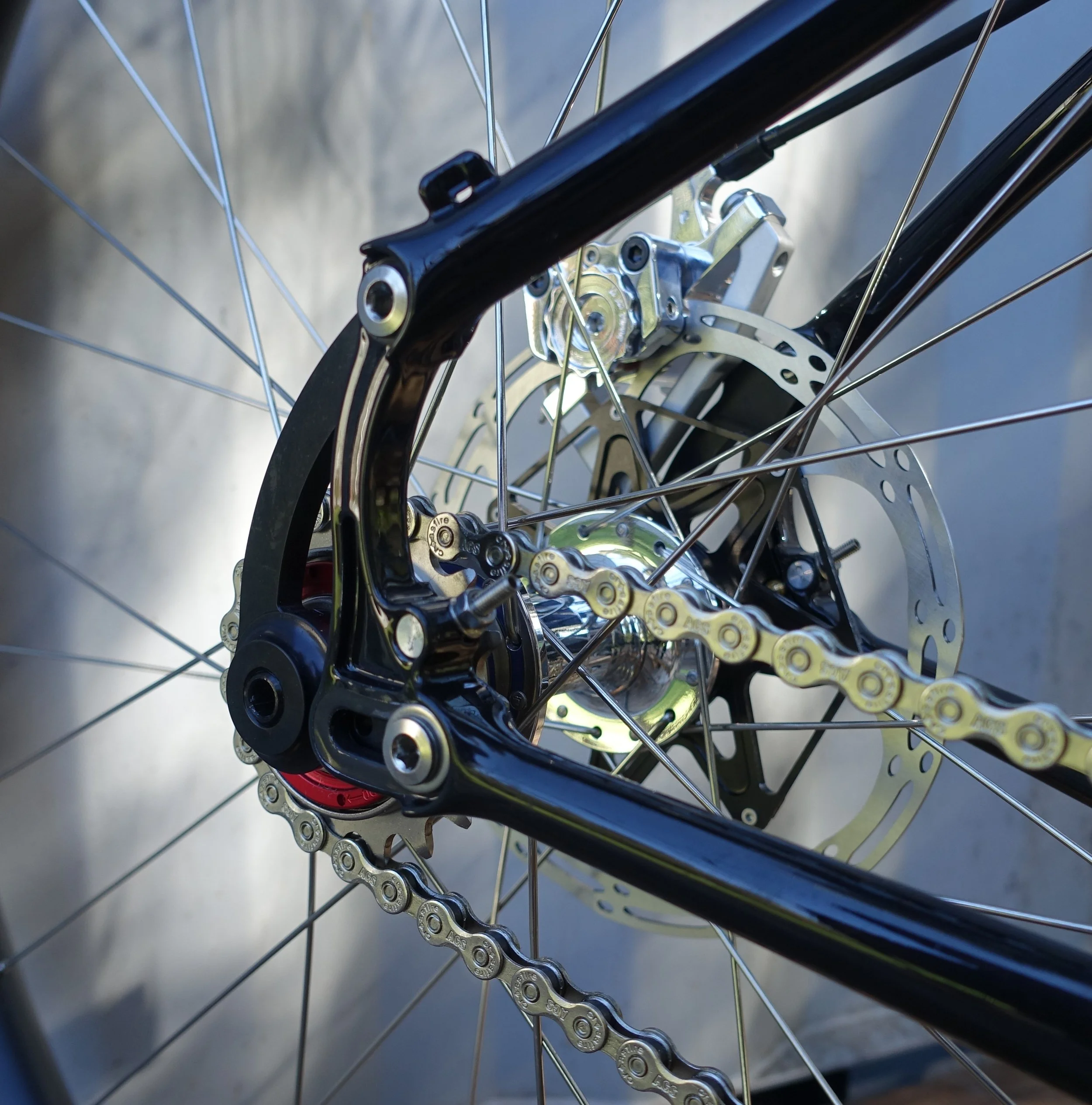

Swinger Dropouts
Designed by Black Cat Bicycles way back in 2005, this is the best way to adjust chain tension, bar none. Easy and secure, it’s no wonder it was copied throughout the industry. Choose this option for the best looking and best working single speed on the market.
-

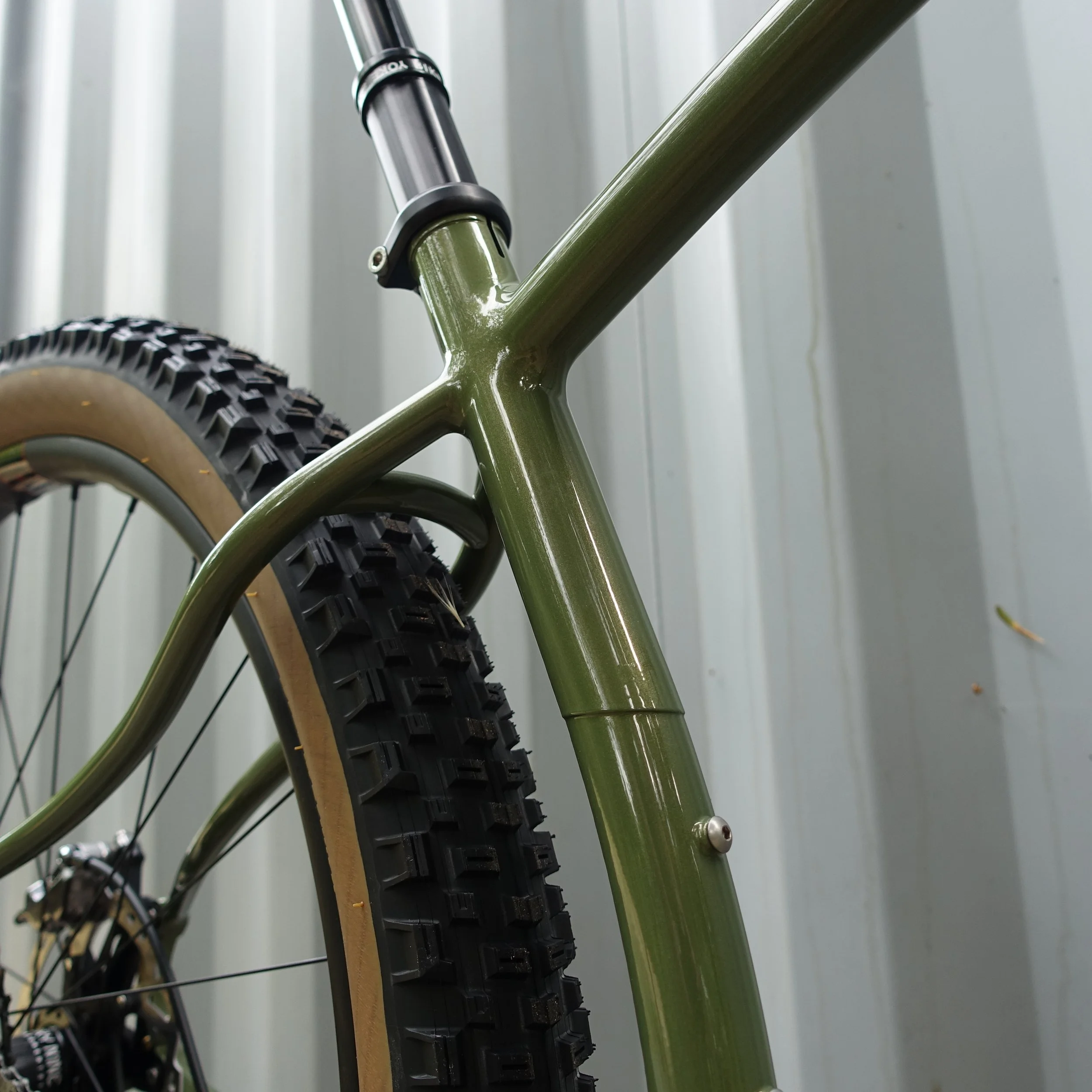

Fillet Brazing
This construction technique yields the most opportunities while building a bike frame. With a combination of smooth seamless joints and hard square edges, you’ll get a bike like looks and rides like nothing else out there.
-

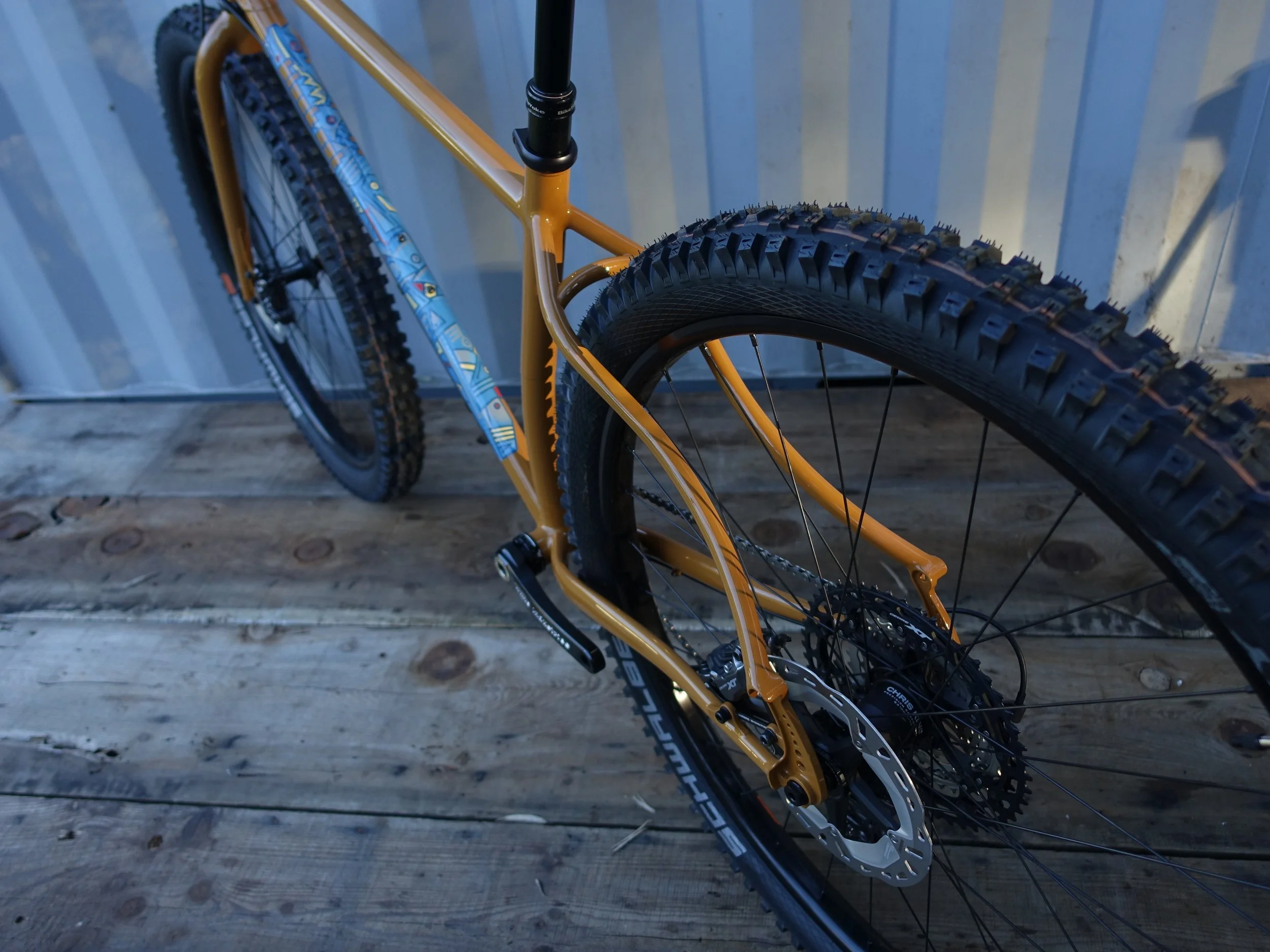

S-bend Seatstays
By using a selection of proprietary benders, each frame is built with tubing chosen specifically for each rider’s maximum comfort. This allows for a finely tuned ride that just isn‘t possible with off-the-shelf options.
-

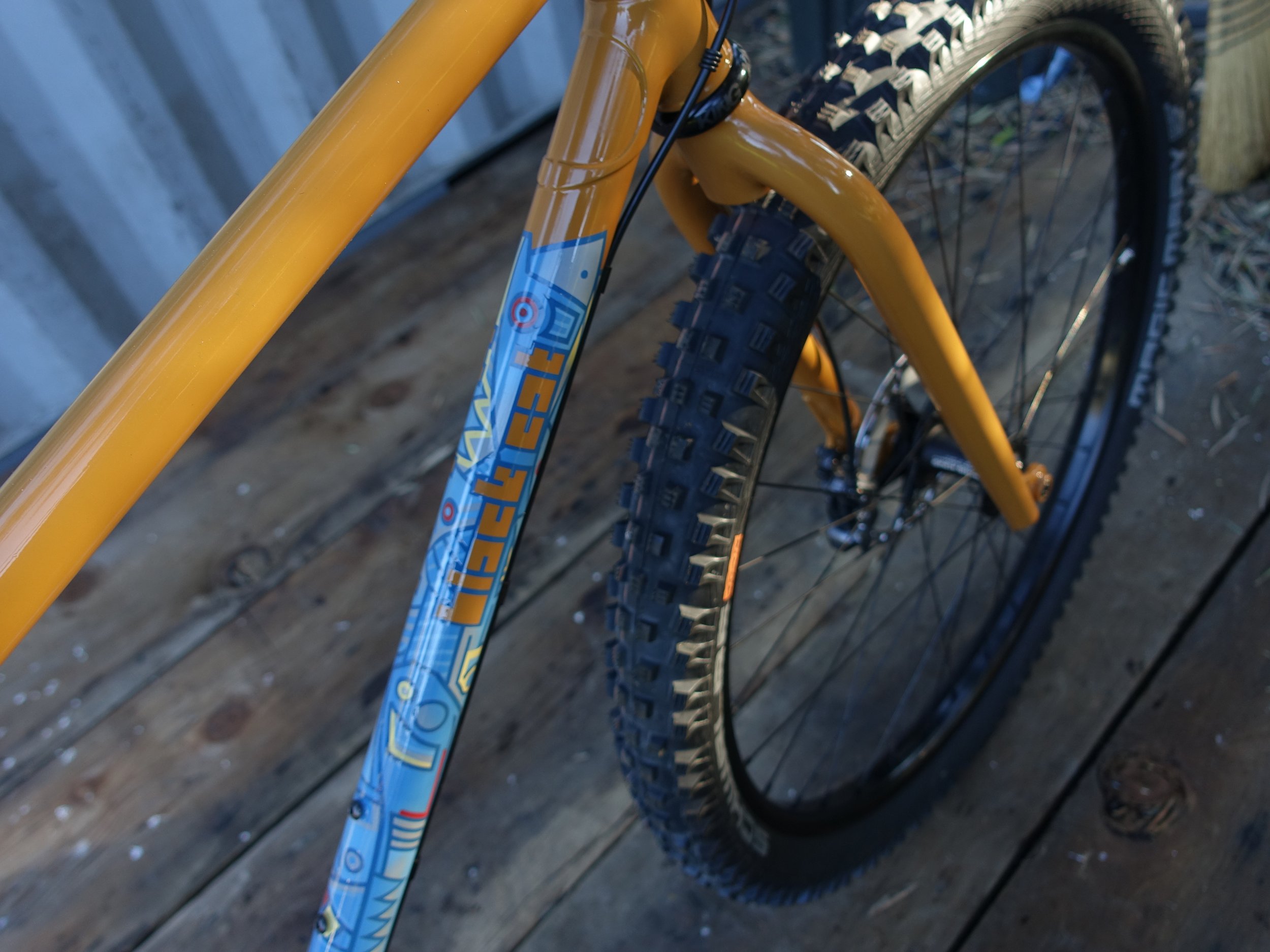

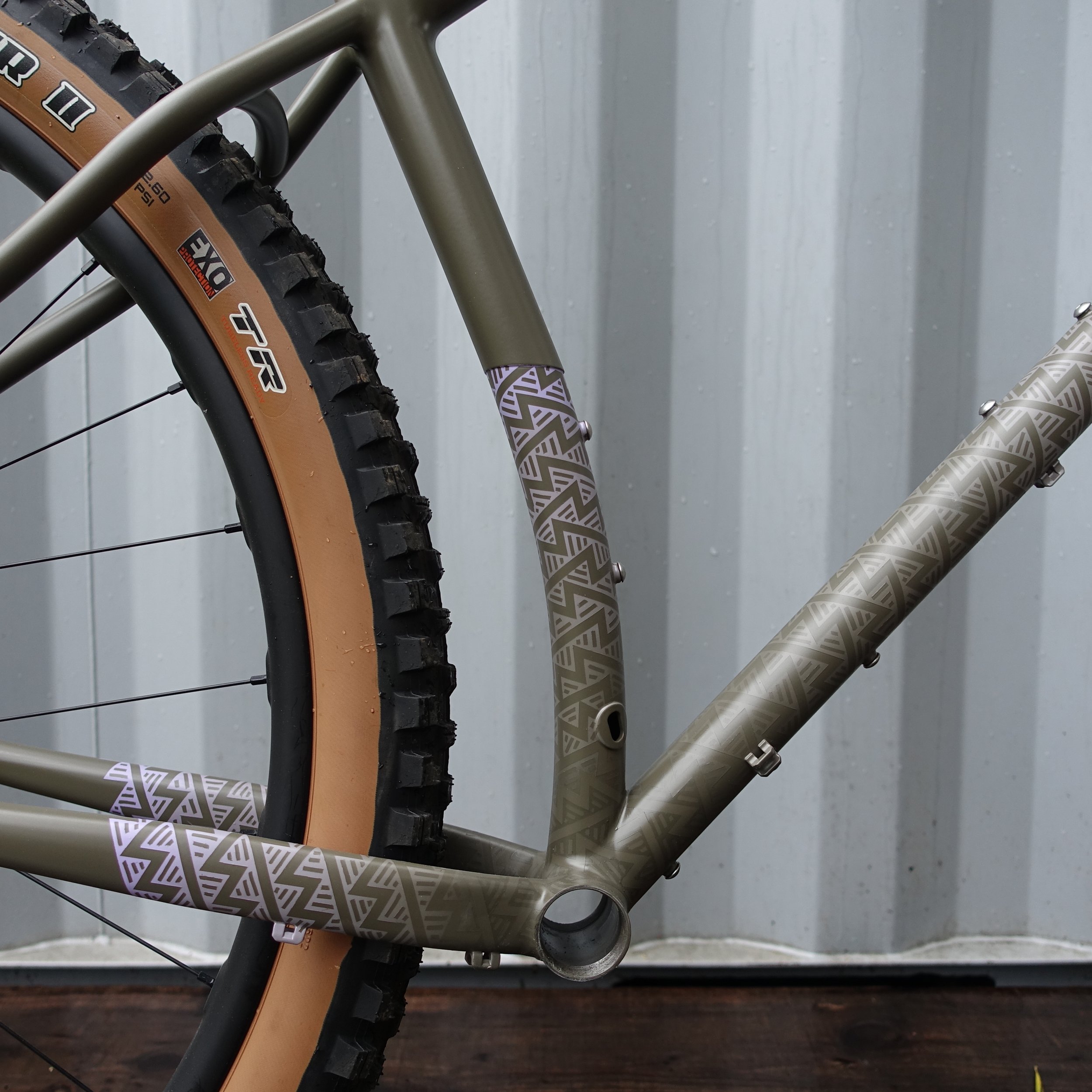

Original paint
From a one-off logo, to a full-blown freakout. No two Black Cats are finished the same. Let’s make your bike a perfect reflection of you.
Details
29 x 2.6” tires on a 35mm wide rim

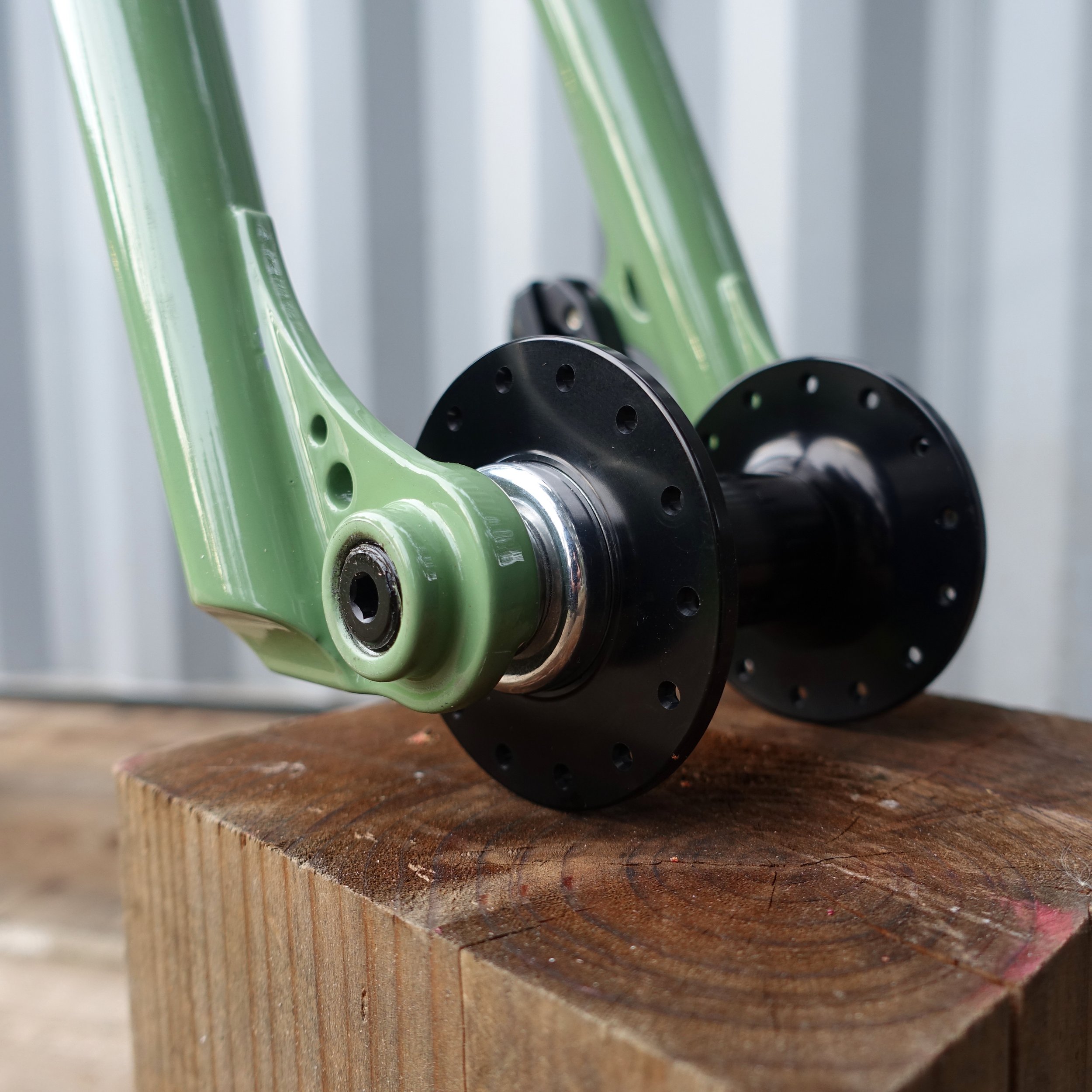

Black Cat unicrown fork with leading axle dropouts for maximum compliance. Tapered steerer when appropriate.
67-68 degree head angle
Modern front-center dimension for long top tube, short stem
430-450 chainstay length, depending on rider height
12 x 148mm Swinger or Art School Dropouts
52mm boost chainline w/ 32t round chainring,
30.9 seatpost size, “stealth” routing, exiting toward the bottom of the seat tube
Radiused seat tube
Brazed-on zip tie steel routers or Paragon Machine Works bolt-on aluminum routers, along the bottom of the down tube
Head tube lug and down tube gusset
36/40mm tapered headtube for ec34/ec37 headset and tapered steerer tube
British threaded 73mm bottom bracket
$4700 frame only, comes with a single color powder coat and single color logo or panel. original artwork starts at $1500
